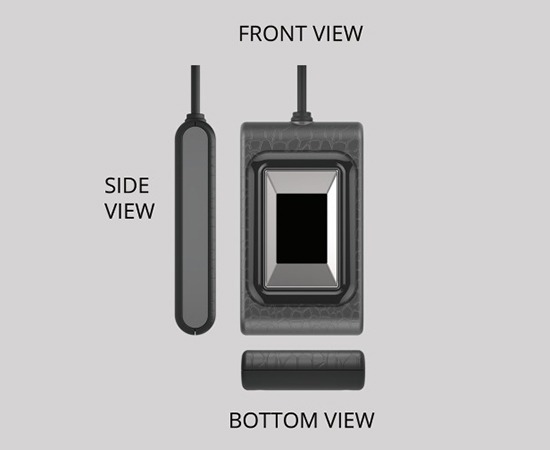

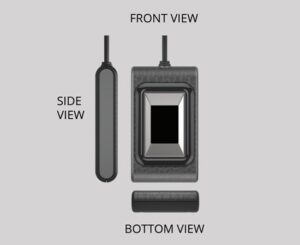

MAPRO CX - CAPACITIVE FINGERPRINT SCANNER

Mapro CX is a secure and reliable fingerprint scanner for precise identification, verification and authentication process. Mapro CX captures high-resolution fingerprint images with the most rugged and advanced optical sensor. The device supports MINEX compliance embedded extractor which is a FAP10 compliant fingerprint device.

The special features of MAPRO CX - Capacitive Fingerprint Scanner include:

• Device securely sign the biometric data
• MINEX compliance embedded extractor
• Lowest FAR and FRR
• Supports multiple devices
• 500 DPI capacitive fingerprint sensor
• High speed USB 2.0 interface with plug and play
• Scratch free sensor surface
• STQC/Aadhaar certified fingerprint sensor
• FAP10 fingerprint device
• Support Aadhaar auth API specification V2.0

Sensor Characteristics
Parameters	Specification
Fingerprint Sensor	Advanced Capacitive Sensor
Spatial Resolution	500 DPI +/-2%
Sensing Area	12.8 mm x 18 mm
Image Size	256 x 360 Pixels
Image Grayscale	256 (8 - Bit Gray Level)
Image Capture Speed (Continuous)	5 FPS
Maximum Acquisition Time	< 2 sec
Approx Dimensions (L x W x H)	58 x 33 x 11 mm
Approx Weight	0.040 Kg

Electrical Characteristics
Parameters	Specification
Operating Voltage	5V +/- 5% (USB Powered Device)
Operating Current (max)	60 mA
Stand by Current (max)	60 mA
Interface	USB 2.0

Environmental Characteristics
Parameters	Specification
Operating Temperature	0 to 50 degC
Storage Temperature	0 to 50 degC
Humidity (Operating / Storage)	< 90% RH, Non-condensing

Compliant to Following Standard
Parameters	Specification
Biometric Data Interchange Format	ISO 19794-2 for minutiae & ISO 19794-4 for Image
Environmental, Health and Safety	Template : RoHS Certification
BIS	IS 13252 (Part 1)
Safety	IEC60950
EMI / EMC Compliance	CE & FCC Class A
*FBI PIV Certification	Compliance
*STQC Certification	Yes
IP Rating	IP67 (Platen Area)
Device Driver	WHQL Certified
OS Supports	Window x86 & x64, Linux, Android
